Modular Solar Power System for All Needs

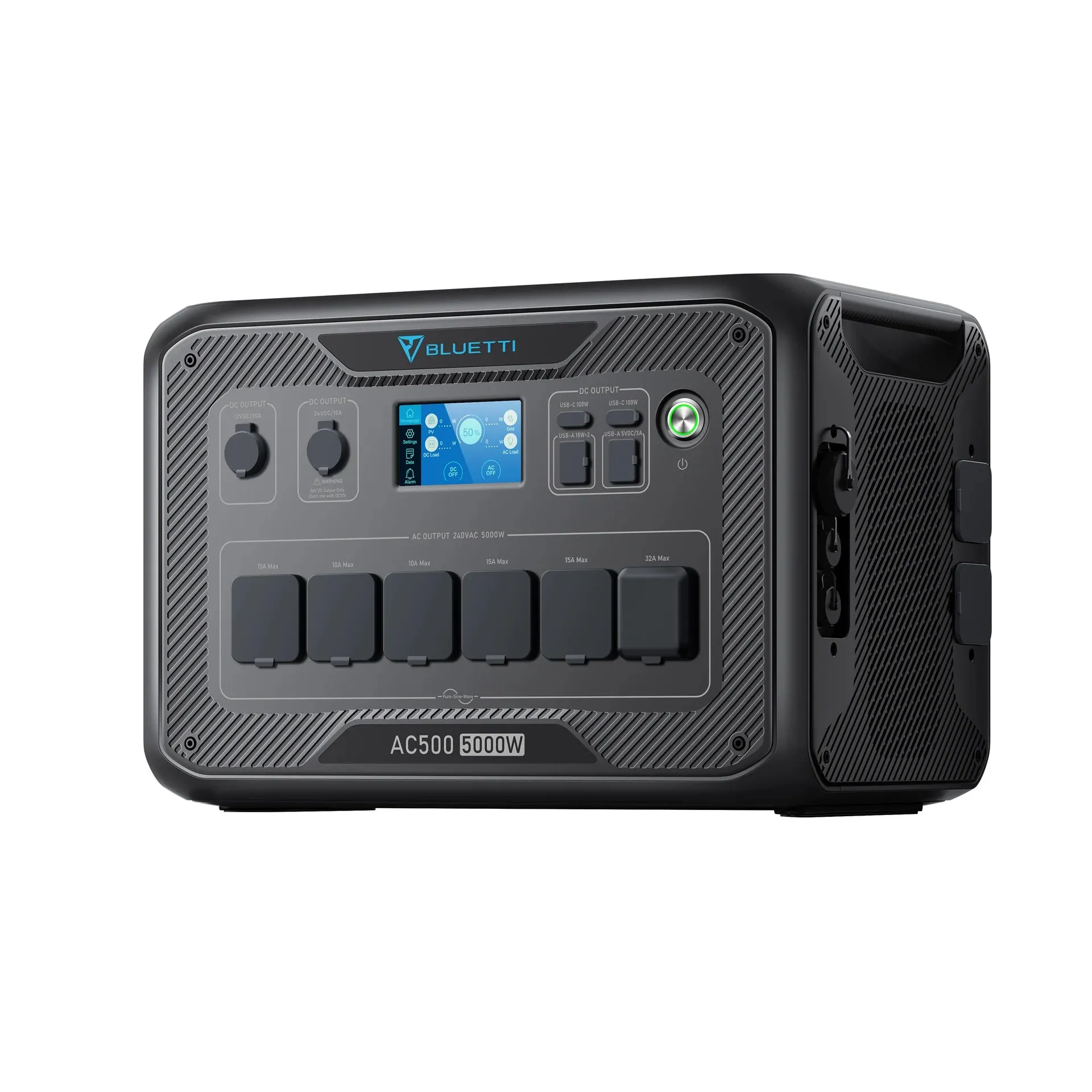

AC500 & B300S, the expandable power system, will definitely shift the way you harness the solar energy. It's designed to help you go through power outages, stay connected to unlimited energy wherever you are heading.
5000W Pure Sine Wave Inverter
This inverter delivers quality pure sine wave output and takes up to 10kW surge, ensuring anything you plug in will be running to its full functionality and capacity.
5000W Pure Sine Wave Inverter
This inverter delivers quality pure sine wave output and takes up to 10kW surge, ensuring anything you plug in will be running to its full functionality and capacity.
Power Option for Personalization

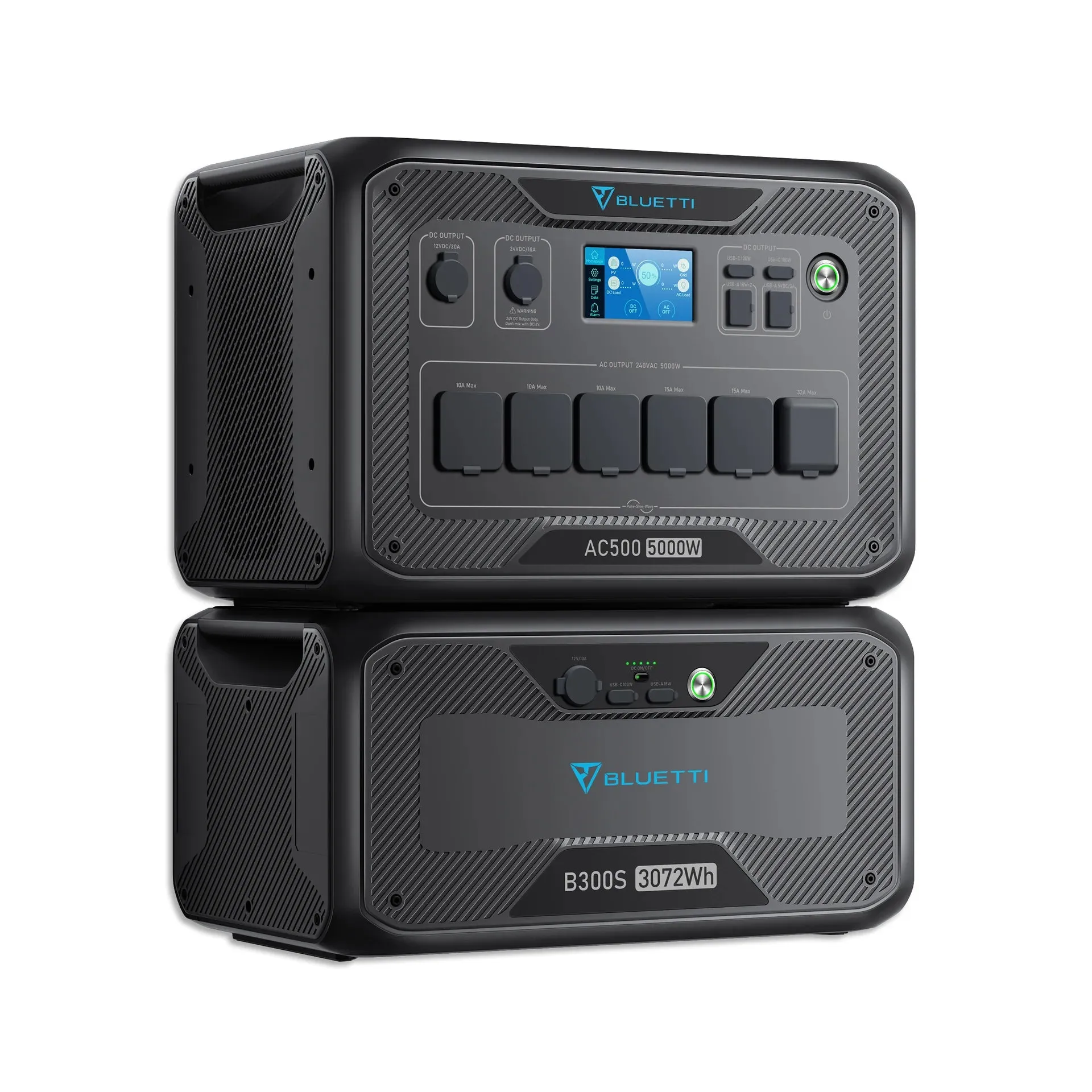

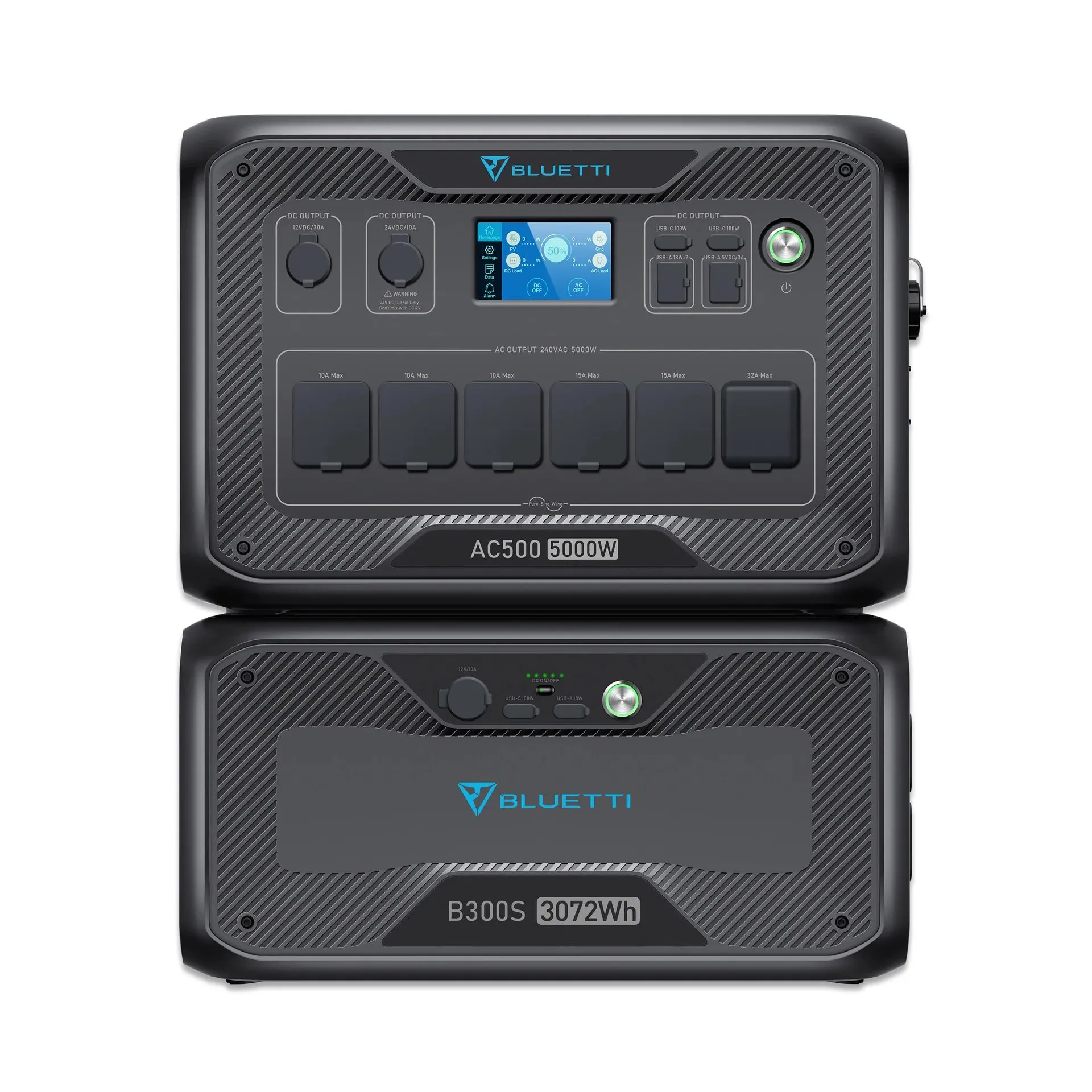

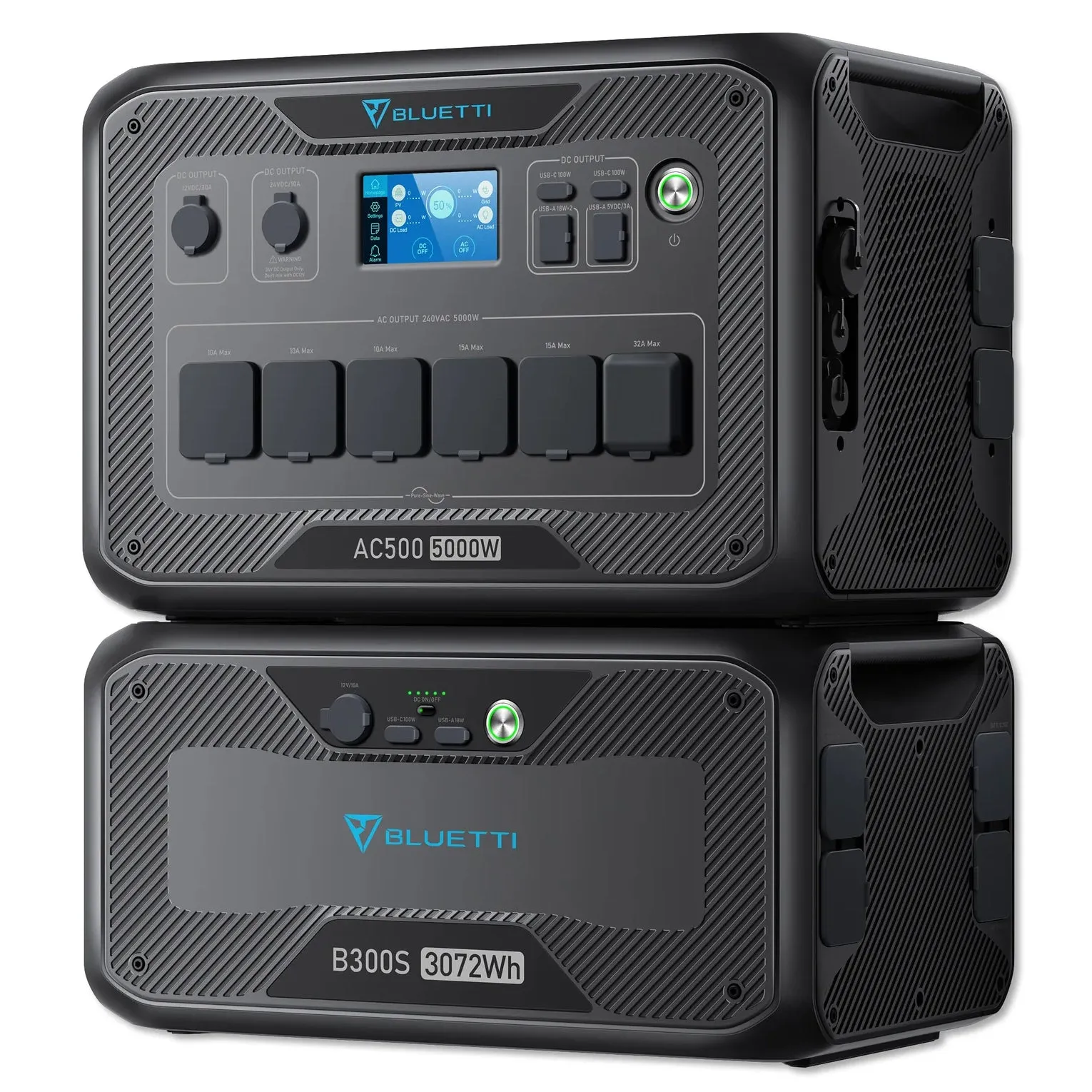

AC500 is 100% modular and can accept up to 6×B300S (3,072Wh each) expansion battery packs, adding up to an overall capacity of 18,432Wh – Power your whole family's basic needs for DAYS
either in daily use or power outages!
Never Run Out of Power
AC500 powers your devices like a gas generator, but without any fuel costs, noise, and pollution, making it safe enough to use next to you
whether you're at home, pitching a tent, or trying an RV road trip.
OUTPUT
AC Outlets: 3 x 240V/10A Outlets
2 x 240V/15A
1 x 240V/32A
5,000W In Total
Inverter Type: Pure Sine Wave
Surge Power: 10,000W
USB Port: 2 x 5V/3A USB-A
2 x 18W USB-A
2 × USB-C 100W Max.
DC Outlets: 1 x 12V/30A (RV Outlet)
1 x 24V/10A (Car Outlet)
*All regulated.
Wireless Charging Pad: 2 x 15W Max.
INPUT
AC Input: 4,500W Max. (W/ 1*B300S),
5,000W Max. (W/ 2 or more B300S).
Solar Input: 3,000W Max. VOC 12-150VDC, 15A
Car Input: 12/24V from Vehicle Cigarette Lighter Port
Maximum Input: 6,000W (W/ 1*B300S), 8,000W (W/ 2 or more B300S) with AC Solar Dual Charging
GENERAL
App Control: Yes, WiFi & Bluetooth Connection
Scalability: Expandable with 6×B300S or 4×B300
Simultaneous Charge & Discharge: Yes
Weight: 66.2lbs (30kg)

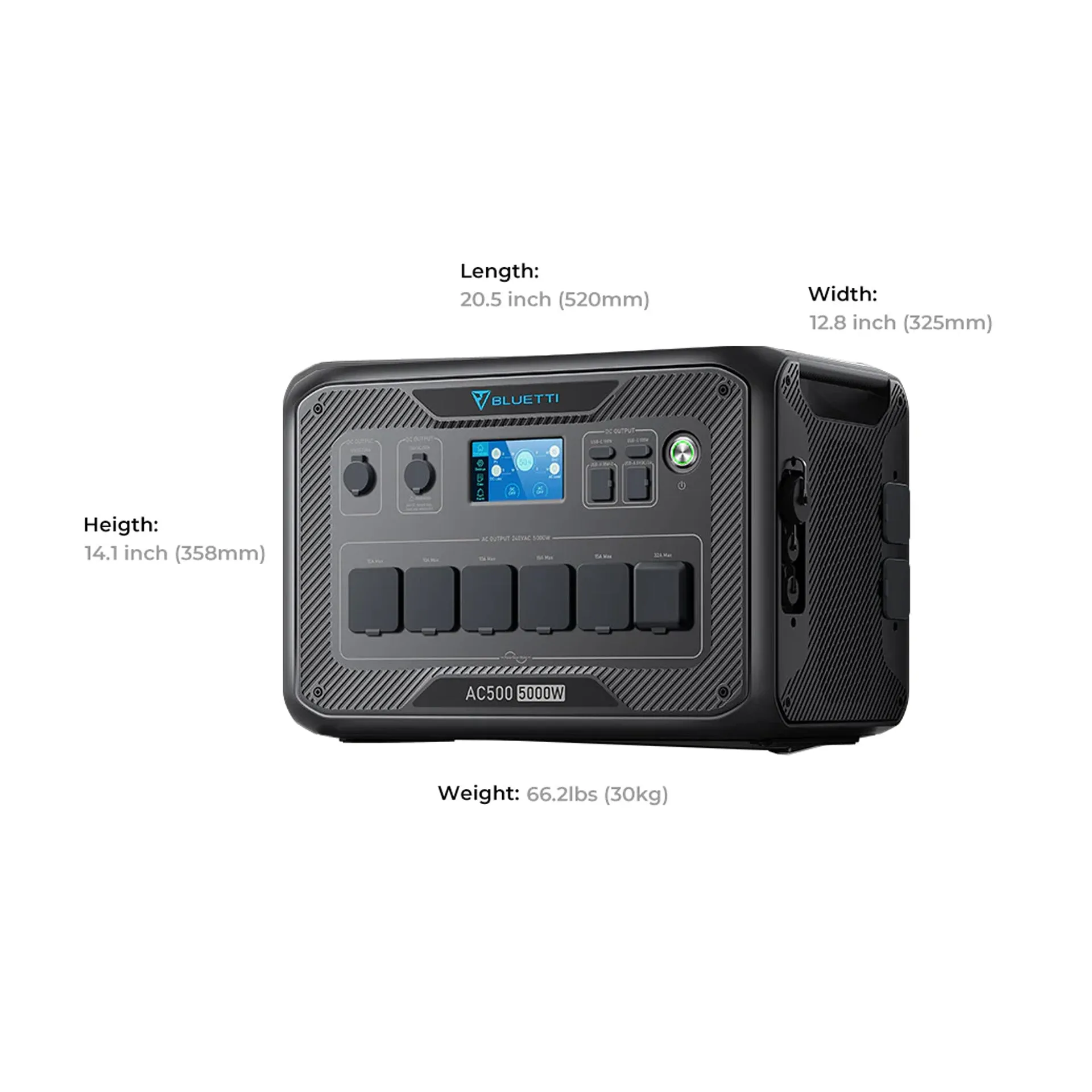

Dimensions (LxWxD): 20.5 x 12.8 x 14.1in ( 52 x 32.5 x 35.8cm)
Operating Temperature: -4?-104? (-20?-40?) (-20-40?)
Storage Temperature: -4?-104? (-20?-40?)
Certification: UL Standard, CEC, DOE, FCC, CA Prop 65
It is recommended to do a discharge and charge cycle every 3-6 months to keep the battery indicator (SOC) accurate
